Description

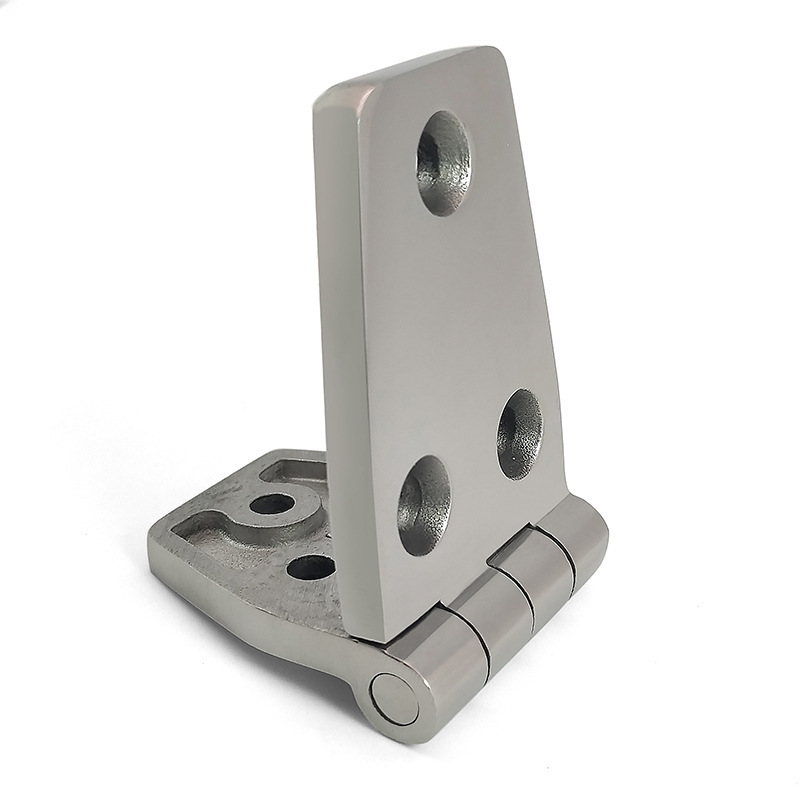

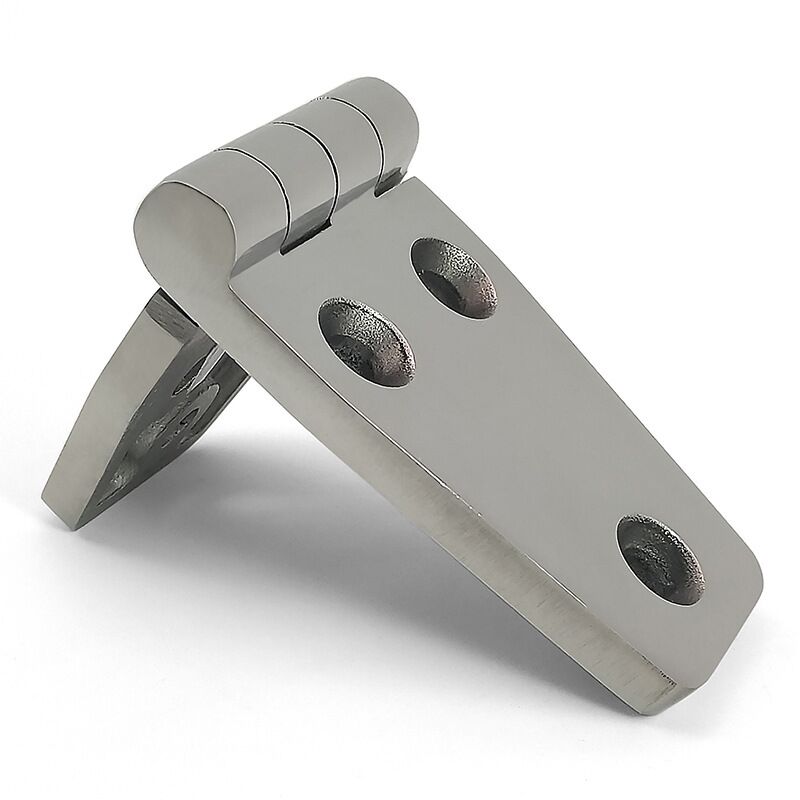

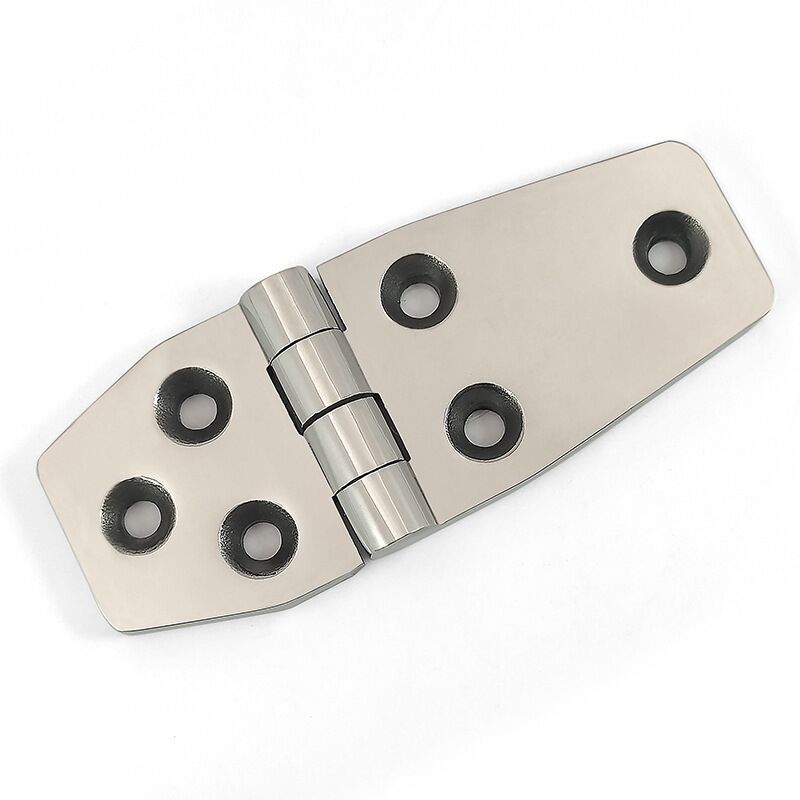

Stainless steel butt hinges for ships are a type of hinge commonly used in marine applications to connect two surfaces or panels while allowing them to pivot or swing. They are typically made of high-grade stainless steel to withstand exposure to saltwater and harsh marine environments.
Stainless steel butt hinges for ships consist of two identical plates, each with a series of knuckles or interlocking fingers that mesh together when the hinge is closed. The plates are attached to the two surfaces being joined, such as a door and a door frame or a hatch and a deck. When the hinge is opened, the two plates pivot on the knuckles, allowing the surfaces to swing open or closed.
Features:
Some common features of stainless steel butt hinges for ships include:
- Corrosion resistance: Stainless steel butt hinges are made from high-grade stainless steel, which provides excellent resistance to corrosion and rust caused by exposure to saltwater and other harsh marine environments.
- Strength and durability: These hinges are designed to withstand heavy use and high loads, making them ideal for use in marine applications where reliability is essential.
- Easy installation: Stainless steel butt hinges are relatively easy to install and can be mounted using standard hardware such as screws or bolts.
- Wide range of sizes: Stainless steel butt hinges are available in a wide range of sizes and styles to accommodate different applications and load requirements.
- Aesthetic appeal: Stainless steel butt hinges have a sleek and modern appearance, making them a popular choice for high-end marine applications where aesthetics are important.

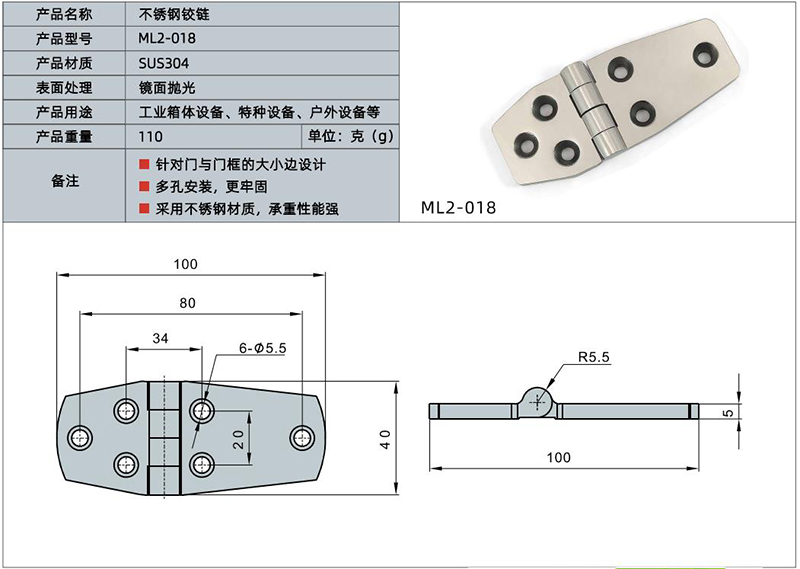

Parameters:
Name: Stainless steel butt hinges for ships
Model: ML2-018
Material: SUS304
Surface Treatment: mirror polishing
Product Usage: Industrial housings, sheet metal housings, kitchen equipment, sanitation equipment
Product Weight: 110 g
FAQs:
What is the difference between stainless steel butt hinges and other types of hinges used in marine applications?
Stainless steel butt hinges are specifically designed for use in marine environments. And are made from high-grade stainless steel to withstand exposure to saltwater and other harsh conditions. They are known for their strength, durability, and corrosion resistance.
Can stainless steel butt hinges be used in other applications besides ships and boats?
Yes, stainless steel butt hinges can be used in a variety of applications where a strong, corrosion-resistant hinge is needed. They are commonly used in outdoor furniture, gates, and other applications where exposure to the elements is a concern.
How do I choose the right size stainless steel butt hinge for my application?
To choose the right size stainless steel butt hinge. You will need to consider the size and weight of the surfaces being joined. As well as the desired range of motion. It is also important to choose a hinge made from a material that is appropriate for the environment in which it will be used.
What maintenance is required for stainless steel butt hinges?
Stainless steel butt hinges require minimal maintenance. But it is important to clean them regularly with soap and water to prevent the buildup of dirt and grime. It is also a good idea to lubricate the hinges periodically with a silicone-based lubricant.
How do I install stainless steel butt hinges on a ship or boat?
Stainless steel butt hinges can be installed using standard hardware such as screws or bolts. It is important to follow the manufacturer’s instructions and ensure. That the hinge is securely mounted to prevent failure or damage.
