Description

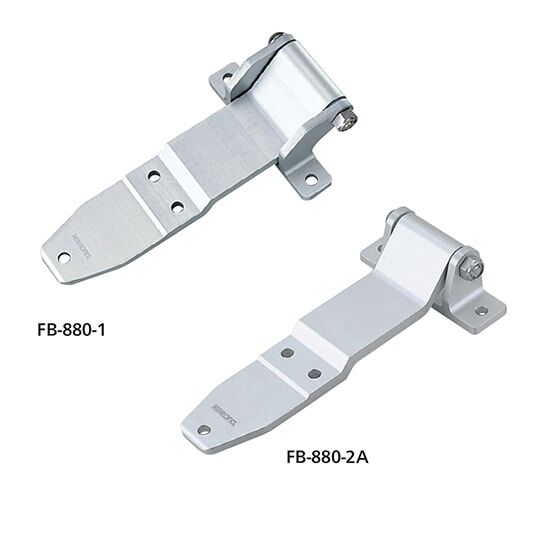

The Leaf-shaped Hinge for Box Trucks is specifically designed for medium and large-sized doors of box trucks, providing excellent strength and durability. It is made from a material that conforms to the JIS6000 series extract with thermal treatment, ensuring reliable performance in demanding applications.
Features
- Constructed from high-quality material for excellent strength and durability.
- Significantly lighter than previous hinge products, reducing overall weight.
- Smooth door opening and closing facilitated by the nylon bush.
- Secure fastening with a stainless steel U nut to prevent pin detachment, allowing for easy pin insertion direction changes.
- Suitable for medium and large-sized doors of vehicles, specifically box trucks.
- Can be installed for either right or left applications by changing the pin’s insertion direction.
Specifications
Material:
- Main unit and seating: Extruded aluminum alloy.
- Axle: Stainless steel (SUS304).
- Finish Alumite treatment.
- Axle diameter: φ12.
Specific Use
The Leaf-shaped Hinge for Box Trucks is designed for use in specially equipped vehicles, containers, vans, and vehicles with wing doors. It offers reliable performance and smooth operation for the specific needs of these applications.
FAQs
Q1: What material is the Leaf-shaped Hinge for Box Trucks made of?
A1: It is made of material that conforms to the JIS6000 series extract, providing excellent strength and durability.
Q2: How does this hinge compare in weight to previous products?
A2: It is much lighter than the previous products.
Q3: Does the hinge have any features for smooth door opening and closing?
A3: Yes, it is made with a nylon bush, ensuring smooth operation of the door.
Q4: Will the pin of this hinge fall off?
A4: No, the pin is tightened with a stainless steel U nut to prevent detachment.
Q5: Can this hinge be installed for both right and left applications?
A5: Yes, it can be installed for either right or left by changing the pin’s insertion direction.
