Description

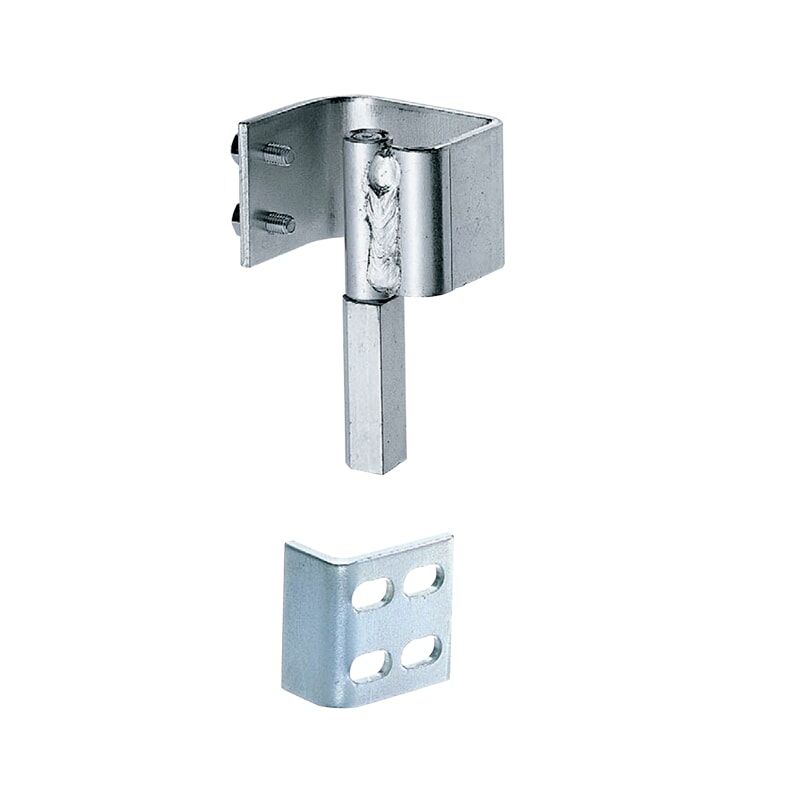

Concealed Hinges for Distribution Boards are specifically designed to be used in distribution boards, cubicles, and control boards. They are crafted to provide secure and efficient door operation within these applications.
Features:
1. Adjustable angle: The hinges can be easily adjusted to match various cases with different step angles, ensuring a proper fit.
2. Sturdy construction: The hinge is made of hot rolled steel plate (SPHC), while the shaft is composed of carbon steel for machine structure (S20C), ensuring durability and reliability.
3. Protective finish: The hinges are coated with zinc plating chromate treatment (MFZn-C), which offers excellent resistance against corrosion.
4. Vertical door support: When two hinges are used vertically, they can support a door mass of up to 15kg (reference value).

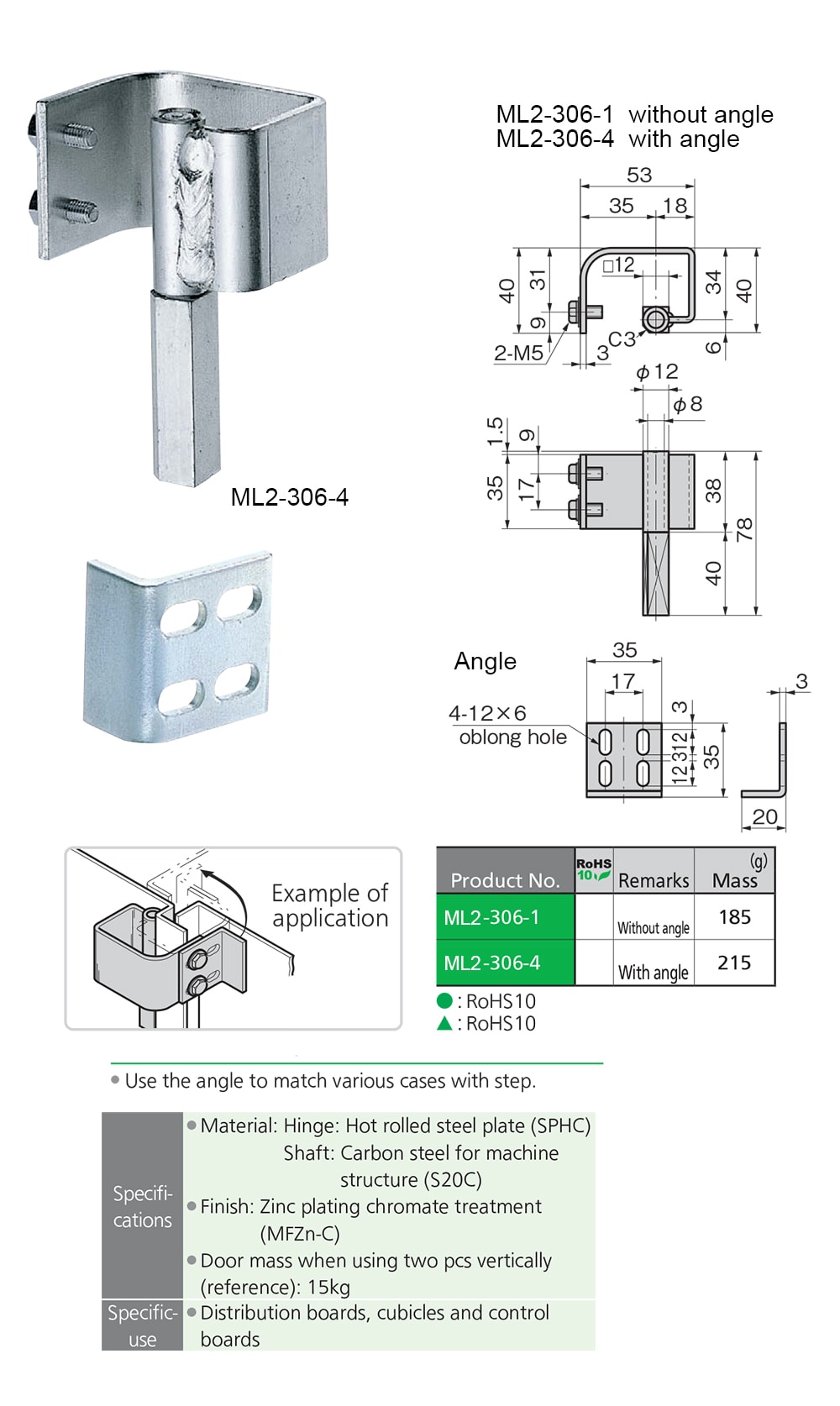

Specifications:
- Hinge: Hot rolled steel plate (SPHC)
- Shaft: Carbon steel for machine structure (S20C)
- Finish: Zinc plating chromate treatment (MFZn-C)
- Vertical Door Mass (Reference): 15kg
Specific Use
Concealed Hinges for Distribution Boards are specifically designed for use in distribution boards, cubicles, and control boards. They provide reliable door operation and support in these applications.
FAQs
Q1: What are concealed hinges for distribution boards?
A1: Concealed hinges for distribution boards are hinges specifically designed for use in distribution boards, cubicles, and control boards to ensure secure and efficient door operation.
Q2: How do concealed hinges for distribution boards adjust to various cases?
A2: Concealed hinges for distribution boards can be adjusted to match different cases with varying step angles, allowing for a proper fit.
Q3: What materials are concealed hinges for distribution boards made of?
A3: The hinges are made of hot rolled steel plate (SPHC), while the shaft is constructed with carbon steel for machine structure (S20C).
Q4: What is the finish of concealed hinges for distribution boards?
A4: Concealed hinges for distribution boards have a zinc plating chromate treatment (MFZn-C) finish, providing excellent corrosion resistance.
Q5: What is the maximum door mass supported by two concealed hinges for distribution boards when used vertically?
A5: When using two hinges vertically, they can support a door mass of up to 15kg (reference value).
