Description

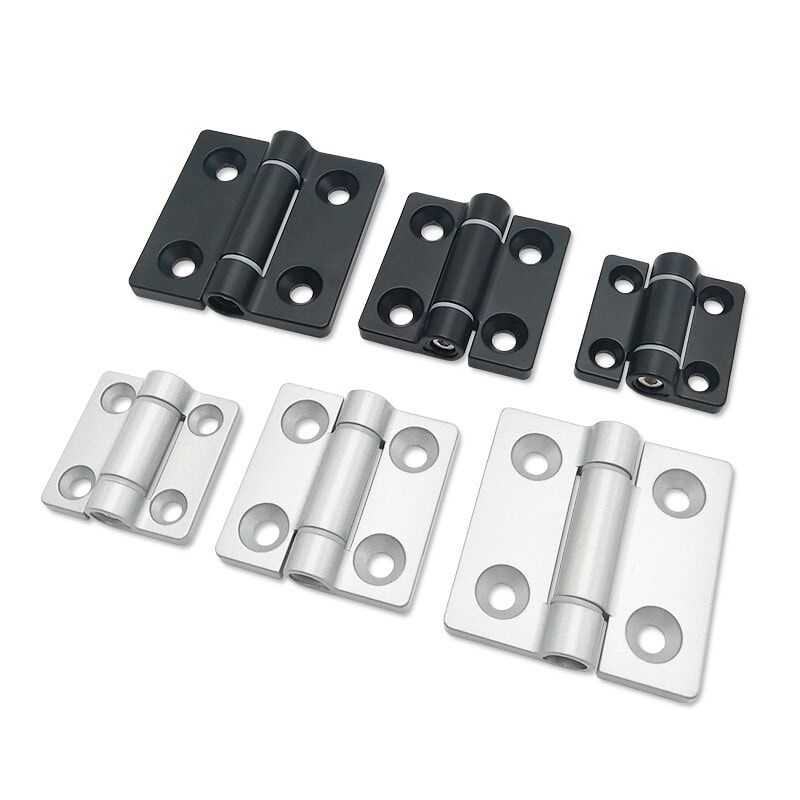

This product line features torque hinges available in 9 models across 3 sizes and 3 colors, designed for use in various types of doors for cabinets such as wine cabinets, soundproof cabinets, and art cases. Manufactured using both 304 stainless steel and zinc alloy materials, these hinges provide reliable torque to allow the door to stay in place at any angle within its range of motion.
The hinges are available in black, silver, and natural stainless steel finishes, ensuring both durability and aesthetic versatility. Custom specifications and colors can also be provided to meet specific customer needs.
Parameters
| Model Number | Material | Finish | Size (mm) | Torque Range (N·m) |
|---|---|---|---|---|

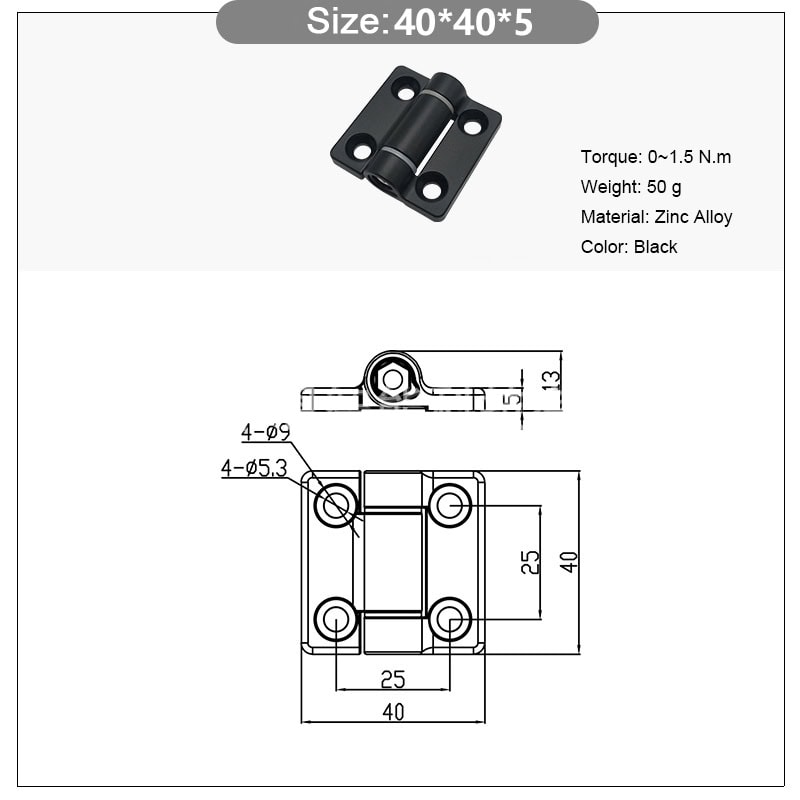

| ML2-Z40B | Zinc Alloy | Black | 40*40*5 | 1.5 |

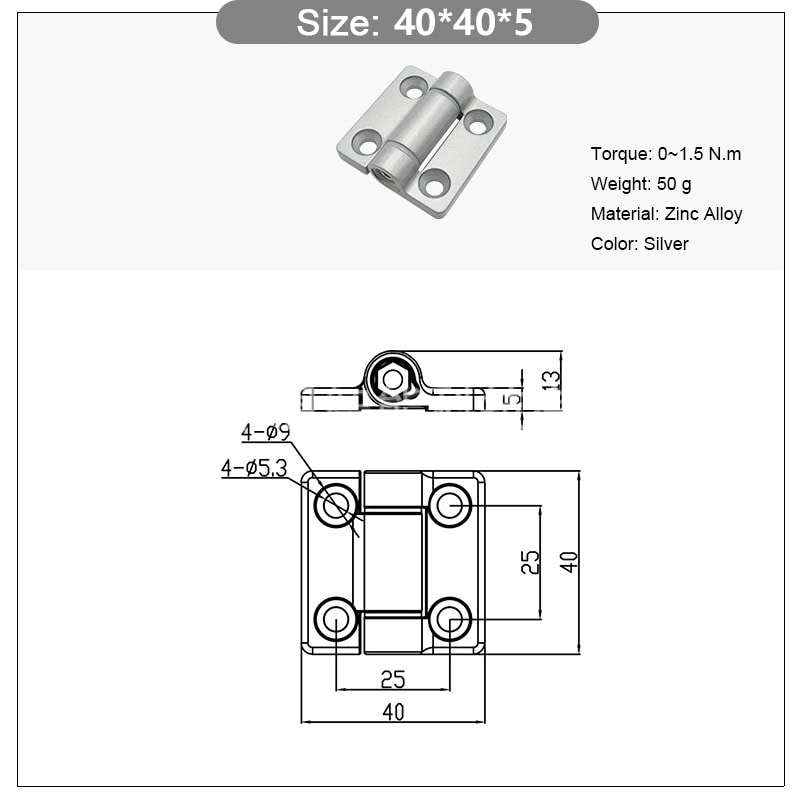

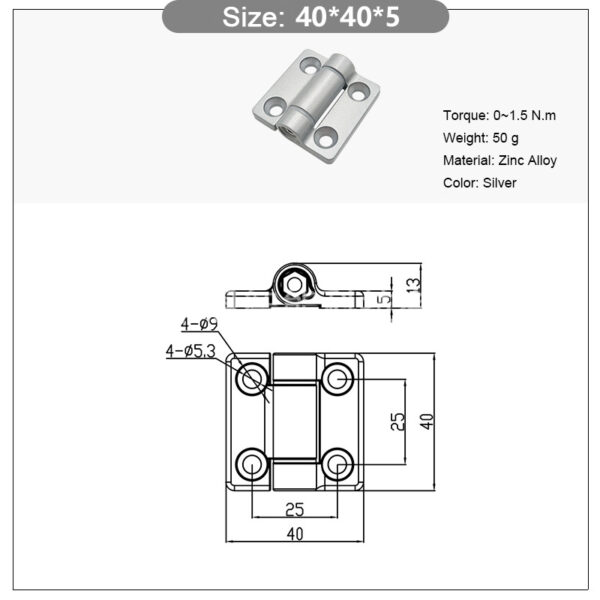

| ML2-Z40S | Zinc Alloy | Silver | 40*40*5 | 1.5 |

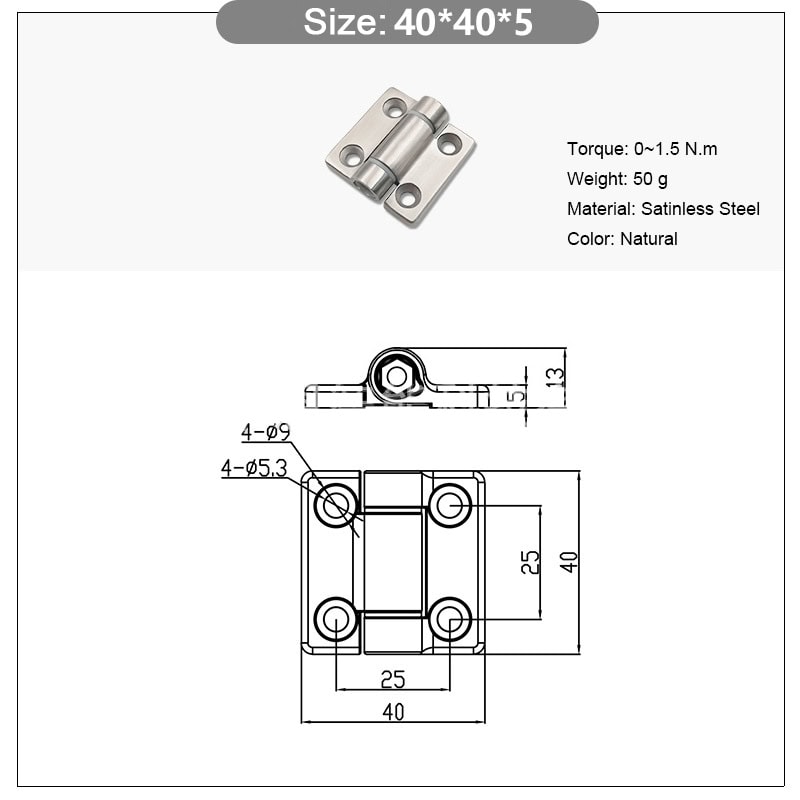

| ML2-S40N | SS | Natural | 40*40*5 | 1.5 |

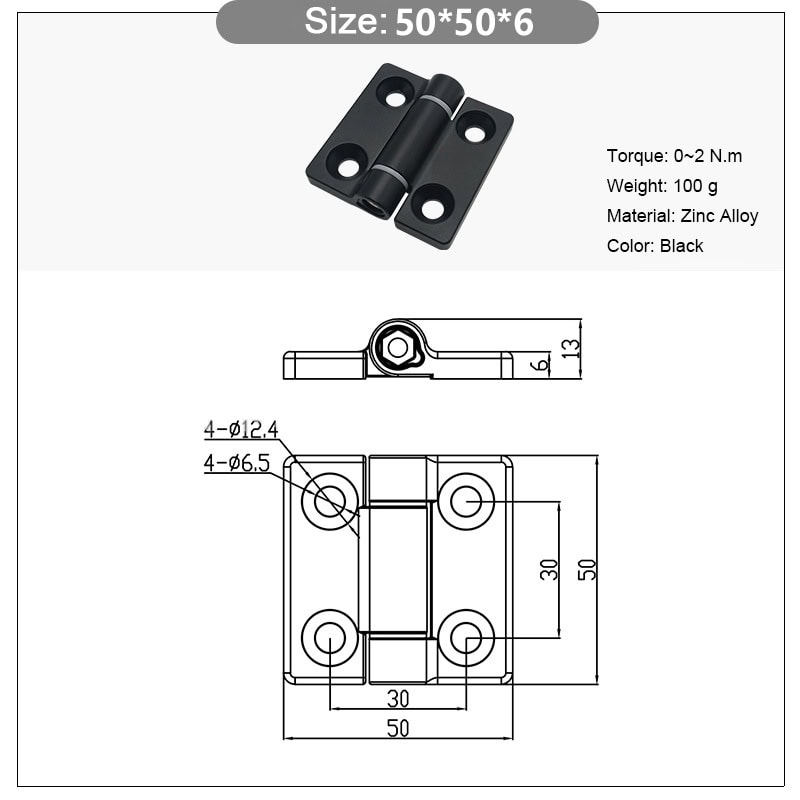

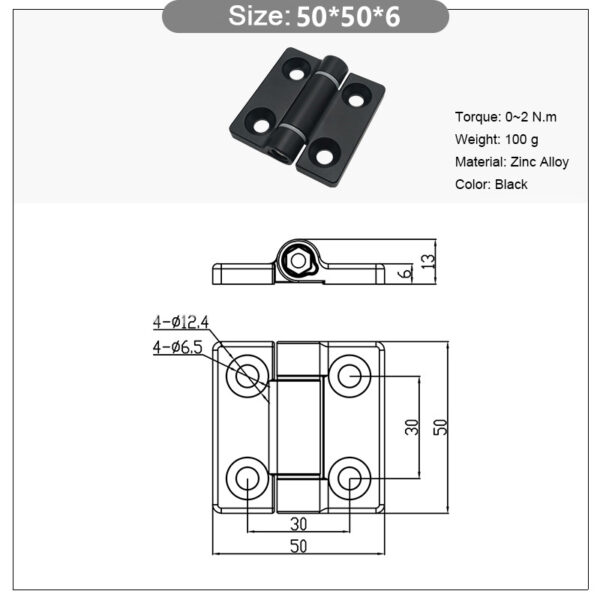

| ML2-Z50B | Zinc Alloy | Black | 50*50*6 | 2.0 |

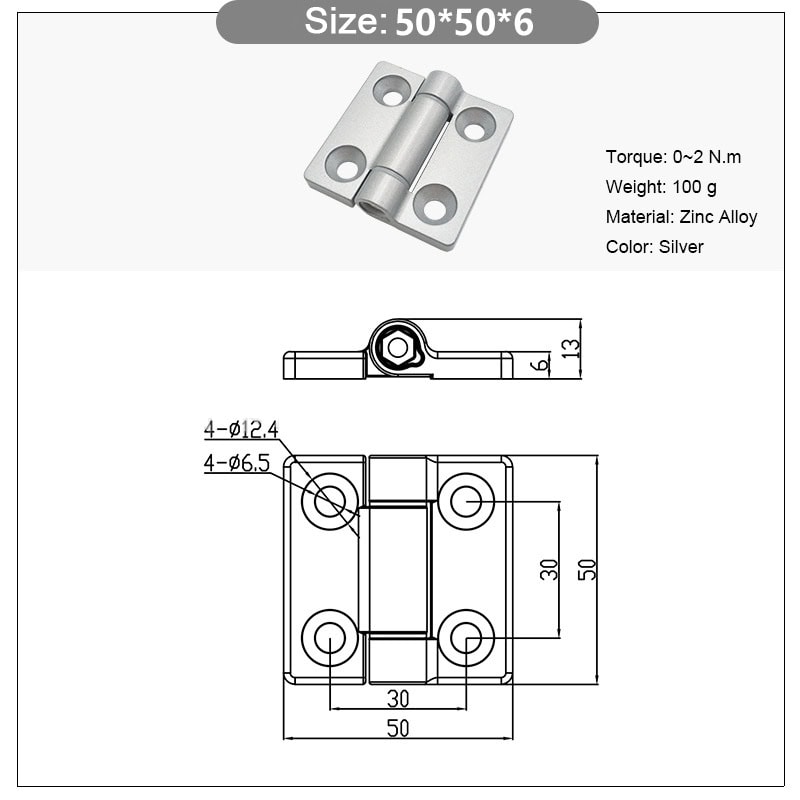

| ML2-Z50S | Zinc Alloy | Silver | 50*50*6 | 2.0 |
| ML2-S50N | SS | Natural | 50*50*6 | 2.0 |

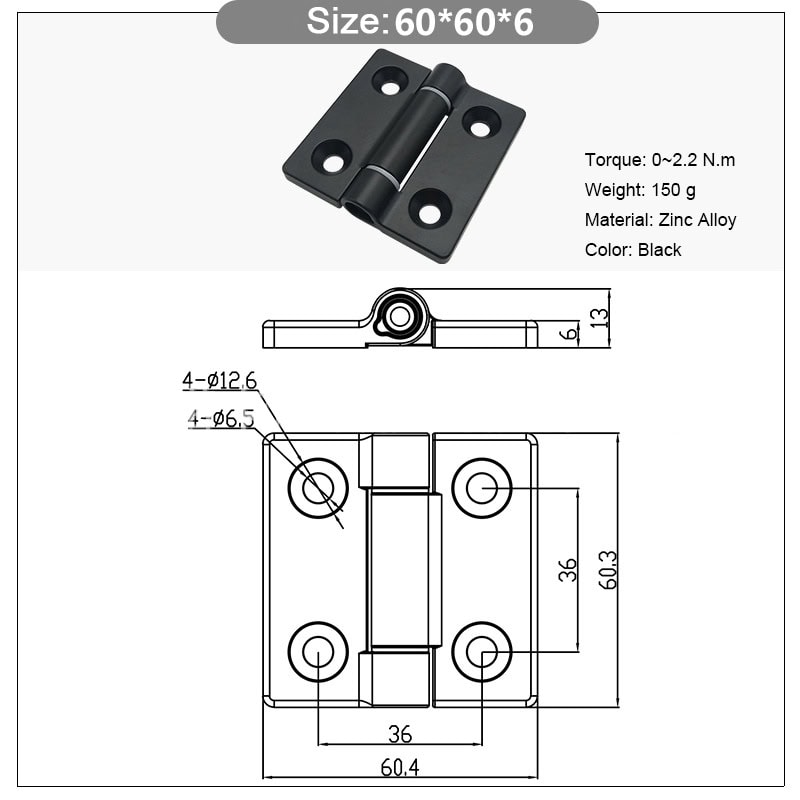

| ML2-Z60B | Zinc Alloy | Black | 60*60*6 | 2.2 |

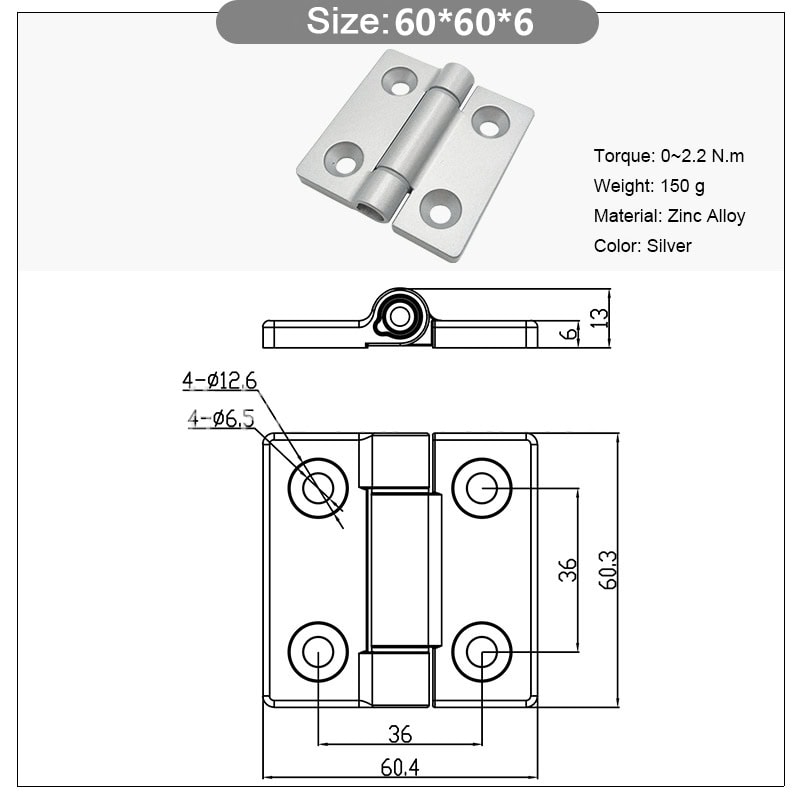

| ML2-Z60S | Zinc Alloy | Silver | 60*60*6 | 2.2 |

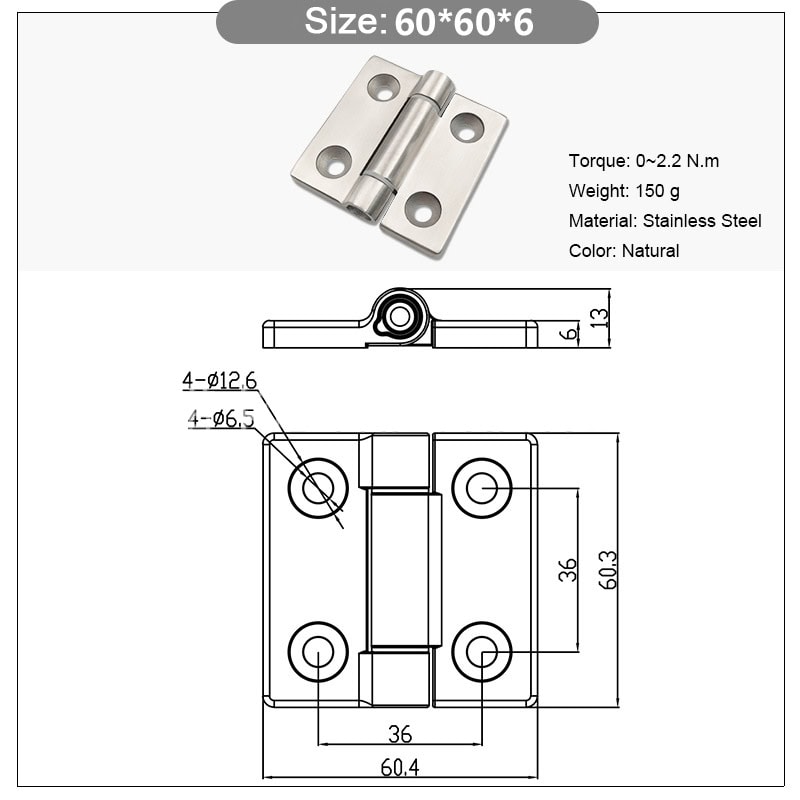

| ML2-S60N | SS | Natural | 60*60*6 | 2.2 |
Features
- Material Options: Made from high-quality 304 stainless steel or zinc alloy, offering durability and corrosion resistance for long-term use.
- Torque Control: The hinges can stop at any angle within the door’s movement range, allowing the door to remain stationary without external support.
- Surface Finishes: Available in black, silver, and natural stainless steel finishes, providing options for different aesthetic needs and resistance to wear.

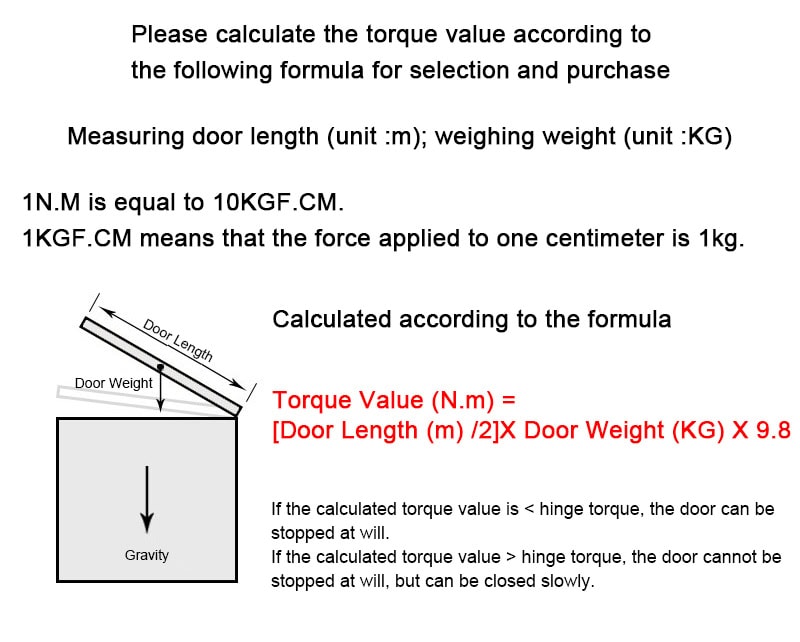

- Multiple Specifications: Different sizes and torque ranges available to suit various door weights and sizes. Torque can be selected using the formula provided in the diagram to ensure optimal performance.
- Customizable: Custom colors and specifications available to meet unique design and functional requirements.
Application
These torque hinges are ideal for cabinet doors in applications such as wine cabinets, soundproof cabinets, and artistic display boxes. The ability to hold the door in any position without additional hardware makes them particularly useful for precision or aesthetic-driven installations.
