When selecting hinges for industrial ovens, durability and performance are crucial. Choosing subpar hinges can lead to frequent replacements, operational delays, and increased maintenance costs. To solve this, here are ten of the most reliable heavy-duty industrial hinges specifically designed for ovens, ensuring safety and long-lasting performance.
The best heavy-duty industrial hinges for ovens are designed to withstand high temperatures, heavy loads, and constant use, ensuring operational safety and reliability in demanding industrial environments.
Stay with us as we explore these top 10 hinges with their key specifications.
Industrial Hinges with Lid ML2-001
- Model: ML2-001-1/2/3
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 558g、321g、146g
- Dimensions: Diagram below
Summary: There are three sizes in this series and the mounting holes are long round holes for easy adjustment of the position during installation. The maximum opening angle is 135 degrees. With stainless steel cover, no installation marks after installation.

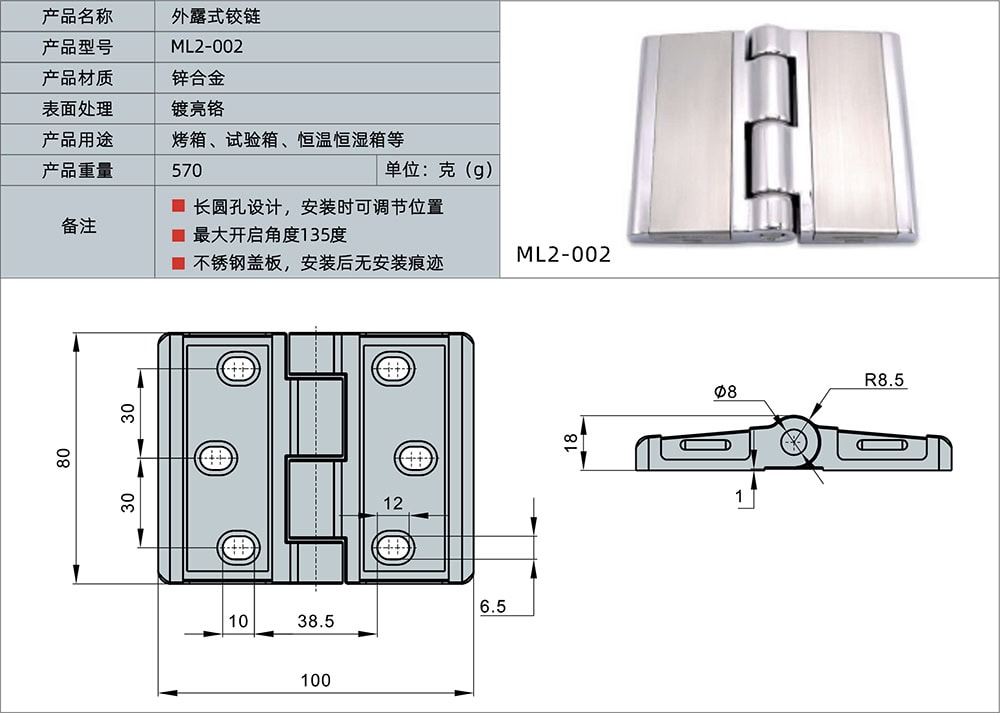

Zinc Alloy Hinge with Cover ML2-002
- Model: ML2-002
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 570 g
- Dimensions: Diagram below
Summary: This hinge is only available in one size and also features a long round hole design for fine-tuning the position during installation. With a maximum opening angle of 135 degrees, it features a stainless steel cover plate and three mounting holes per hinge leaf.

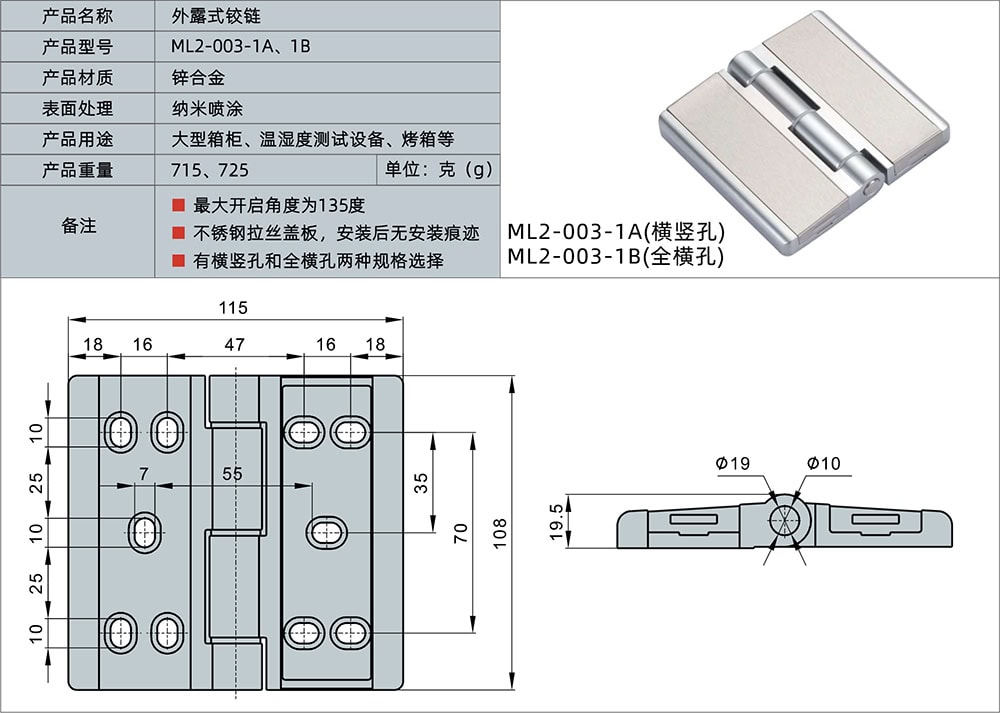

Industrial Oven Hinges with Lid ML2-003-1A
- Model: ML2-003-1A/1B
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 715 g、725 g
- Dimensions: Diagram below
Summary: This industrial oven hinge is available in two sizes, the main difference is that the mounting holes are oriented differently, please check the dimensional drawings in the picture below carefully. It is also mounted with long round holes for easy fine-tuning of the position.

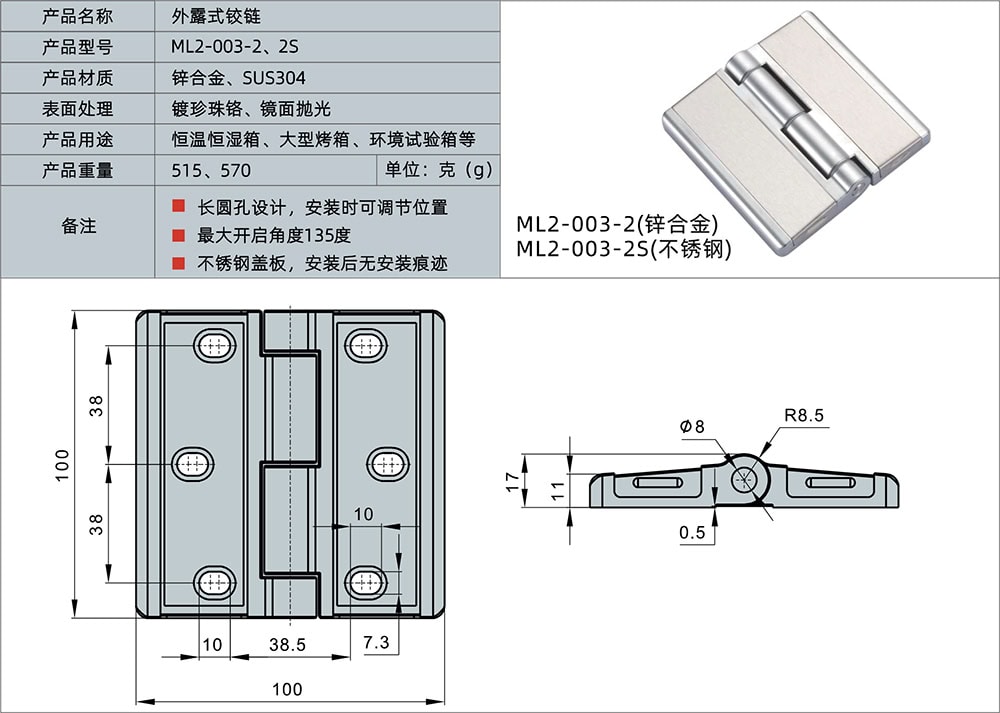

Constant Temperature and Humidity Test Chamber Hinge ML2-003-2
- Model: ML2-001-2/2S
- Material: Stainless Steel 304
- Surface Finish: Polish
- Weight: 515g、570g
- Dimensions: Diagram below
Summary: This hinge is produced in two materials, stainless steel and zinc alloy. The hinge produced in stainless steel has a strong load-bearing performance and is suitable for equipment doors such as large ovens, environmental test chambers and constant temperature and humidity test chambers.
Industrial Hinges with Lid ML2-003-3A
- Model: ML2-001-3A/3B
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 446g、451g
- Dimensions: Diagram below
Summary: This industrial test chamber hinge is available in two sizes, and the main difference is also the direction of the mounting holes. One of them uses horizontal and vertical holes and the other uses all horizontal holes. The purpose is to facilitate the hinge can be fine-tuned during installation. The cover is also made of stainless steel.

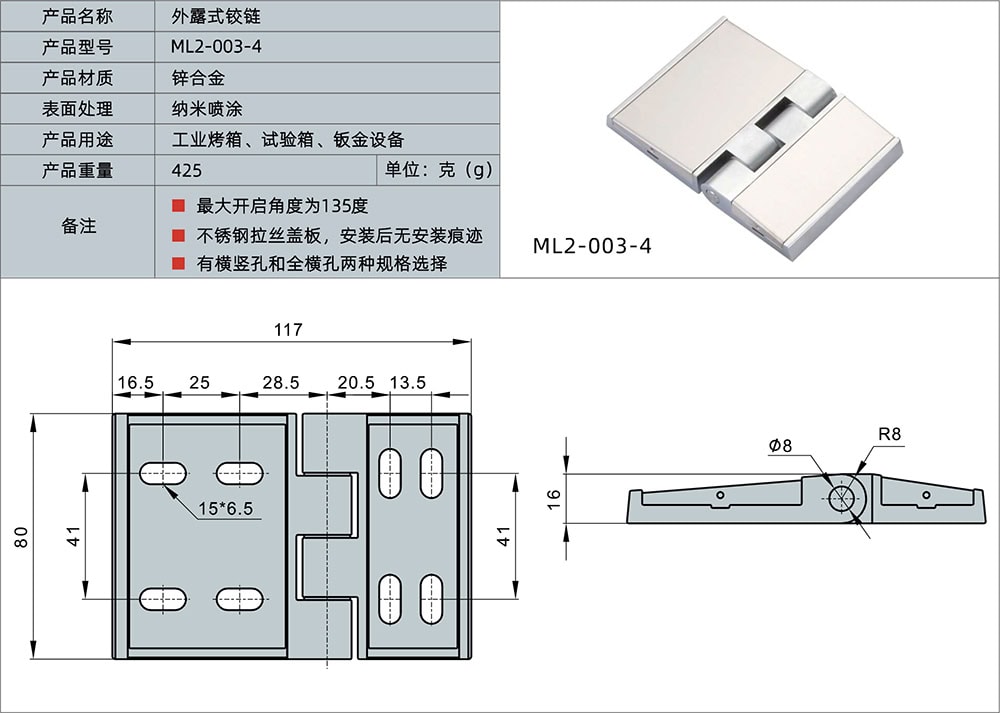

Asymmetric Hinge with Cover ML2-003-4
- Model: ML2-001-3-4
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 425g
- Dimensions: Diagram below
Summary: This Asymmetric hinge with cover finish features a nano-spray process. The default specification of the mounting hole orientation is horizontal and vertical holes. Full horizontal holes can be customized, please contact us for details.

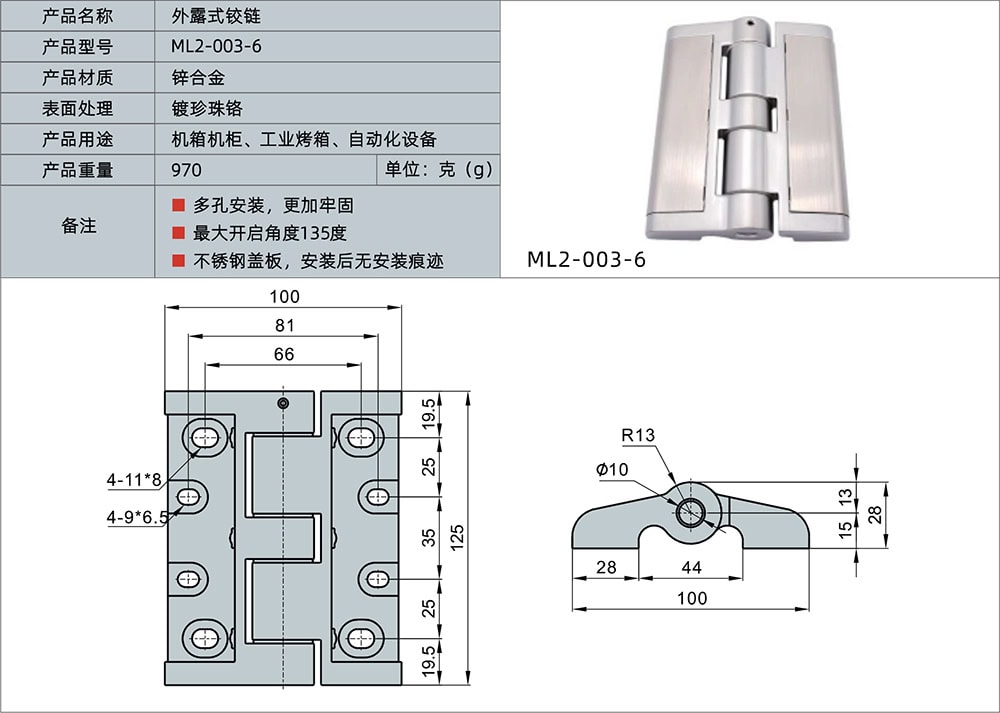

Industrial Oven Heavy Duty Hinges with Lids ML2-003-6
- Model: ML2-003-6
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 970g
- Dimensions: Diagram below
Summary: This is a heavy-duty industrial oven hinge that is large and designed for multiple installations. It also has a maximum opening angle of 135 degrees and is manufactured with zinc alloy die casting with a stainless steel cover. Please be sure to have at least 2 people collaborate on the installation.
Industrial Oven Heavy Duty Hinges with Lids ML2-003-7
- Model: ML2-003-7
- Material: Zinc alloy
- Surface Finish: Bright chrome
- Weight: 1130g
- Dimensions: Diagram below
Summary: This is another heavy duty industrial oven hinge that is larger in size and again designed for multiple installations. The construction is similar to the previous one. The maximum opening angle is also 135 degrees and it is manufactured with zinc alloy die casting and the cover is made of stainless steel. Please be sure to have at least 2 people collaborate on the installation.

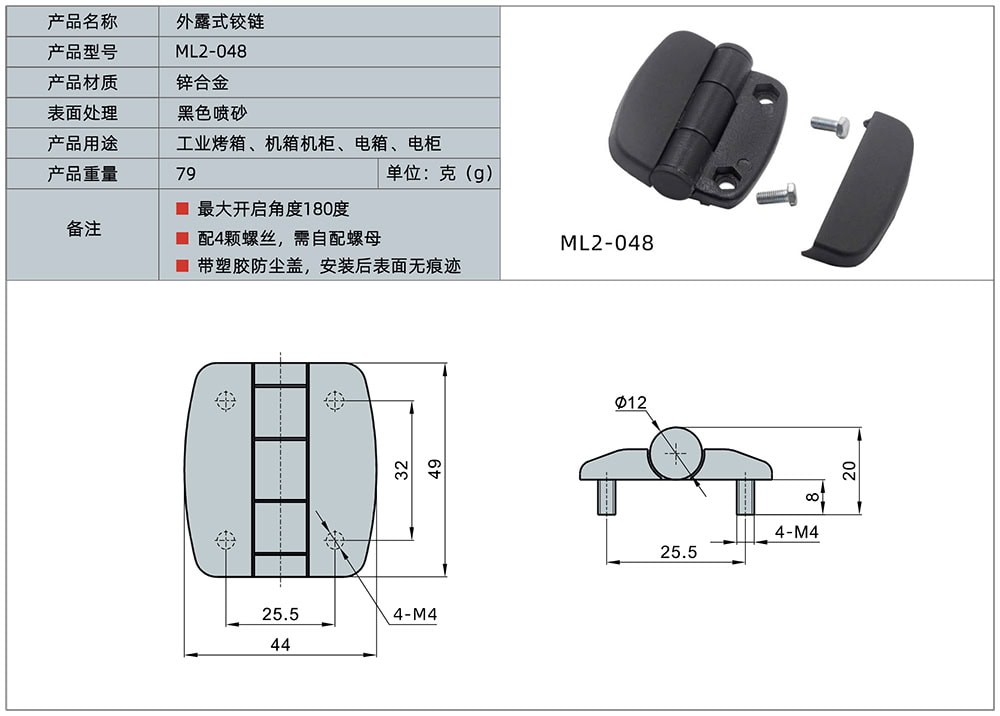

Small Industrial Hinges with Lid ML2-048
- Model: ML2-048
- Material: Zinc alloy
- Surface Finish: Black paint
- Weight: 79g
- Dimensions: Diagram below
Summary: This is a small industrial hinge, produced in zinc alloy with a black painted finish. It is equipped with 4 screws by default, and the screws need to be configured by customers. The cover plate is made of plastic.

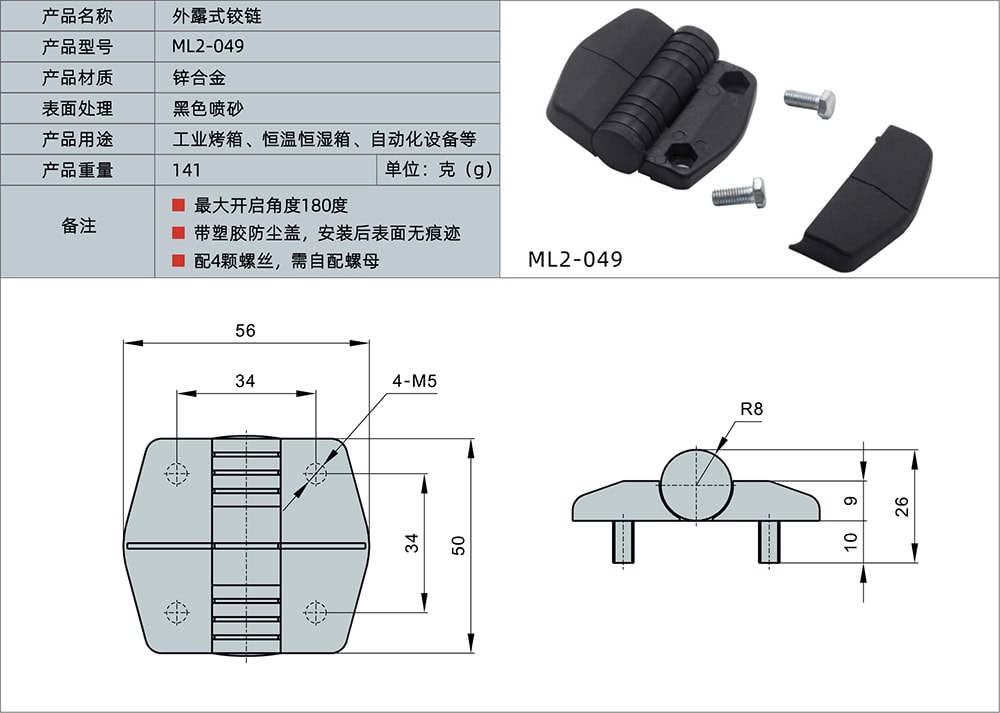

Small Industrial Hinges with Lid ML2-049
- Model: ML2-049
- Material: Zinc alloy
- Surface Finish: Black paint
- Weight: 141g
- Dimensions: Diagram below
Summary: This is another small industrial hinge, also produced in zinc alloy with a black painted finish. The maximum opening angle is 180 degrees. It is equipped with 4 screws by default, and the screws need to be configured by the customer. The cover plate is made of plastic.
Conclusion:
Selecting the right heavy-duty hinge ensures optimal performance for industrial ovens, saving time and maintenance costs.
